2.

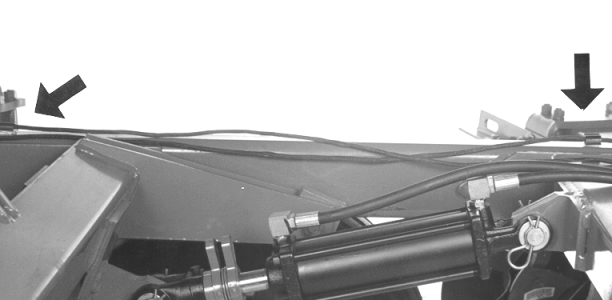

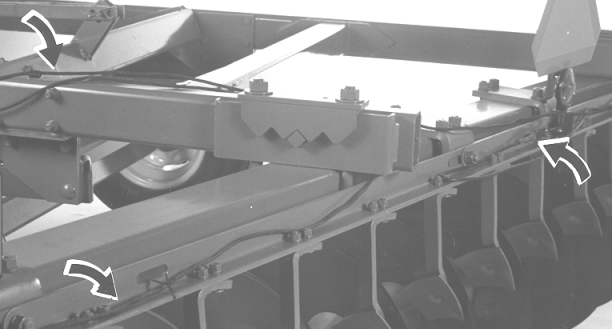

Connect wiring harness left-hand warning light connector to left-hand warning light. Tape unused connectors to wiring harness. Route wiring harness along rear gang tube and secure with clip connect at the center red tail lamp.
NOTE:
Wiring harness is marked left and right for turn signal operation. There are separate connectors for taillights and for warning light-turn signals.
3.

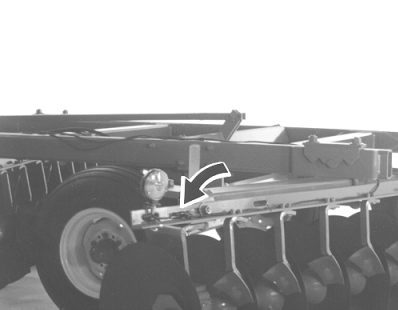

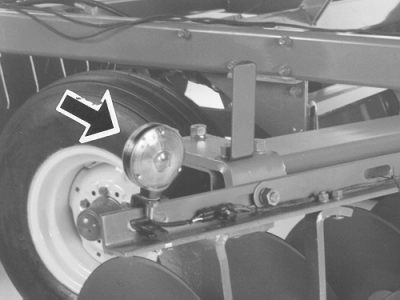

Connect wiring harness right-hand warning light connector to right-hand warning light. Tape unused connector to harness. Route wiring harness along rear gang tube and secure with clip, connect at the other end connector red tail lamp.
|
