Gear Case Lubricant

GEAR OIL

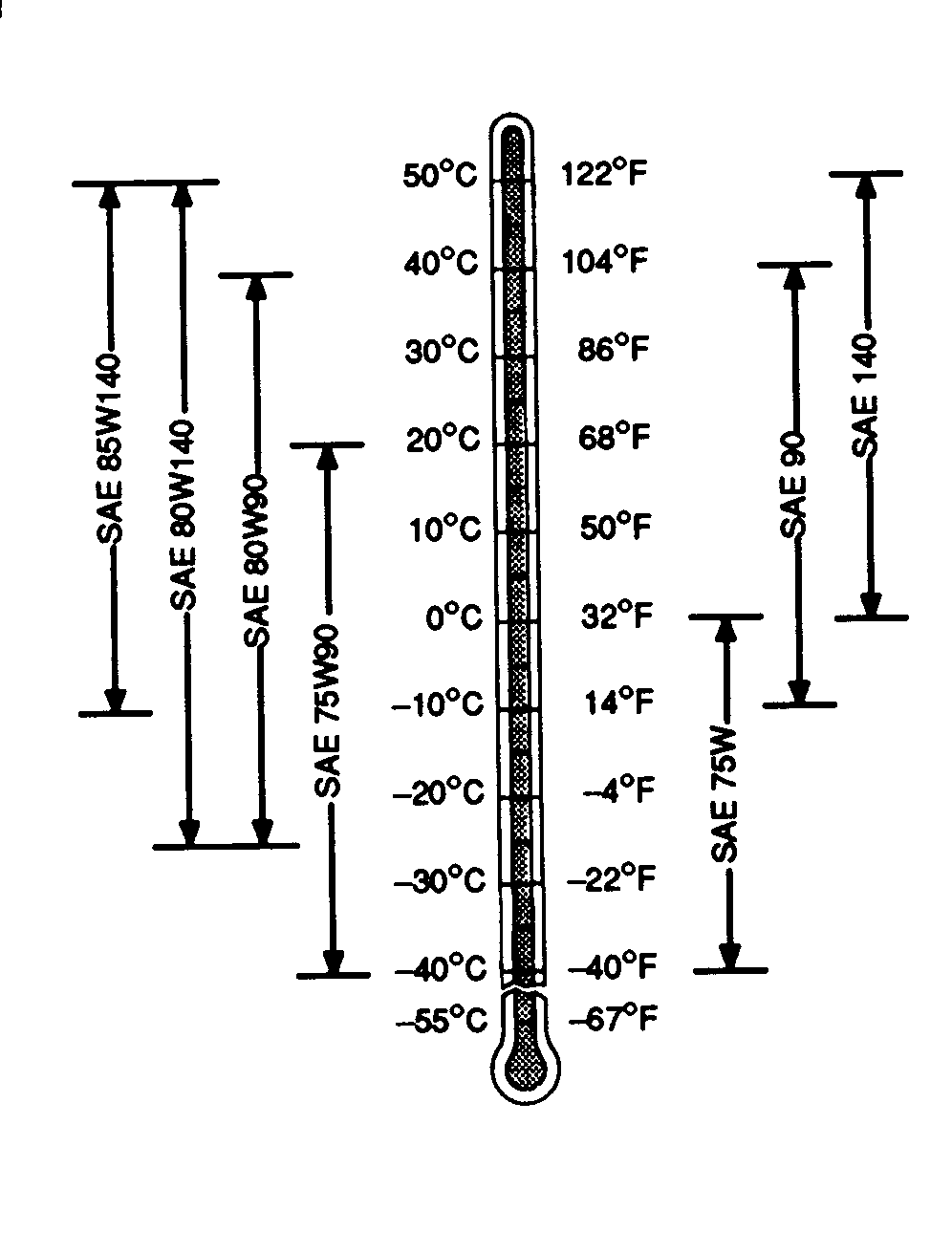

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere EXTREME-GARD TM
  • John Deere GL-5 GEAR LUBRICANT

    Other oils may be used if they meet the following:

  • API Service Classification GL-5

    Arctic oils (such as Military Specification MIL-L-10324A) may be used at temperatures below -30°C (-22°F).

TS1416

AG,PX00525,533 -19-10NOV99-1/1
