Gear Case Service

The gear case (A) of your mower features high-precision, matched, bevel gears that have been precisely assembled with special tools. If the gear case requires servicing, take it to your John Deere dealer.

IMPORTANT: Do not attempt to replace worn or damaged parts in the gear case yourself as serious damaged may result from improper adjustment.

Check the gear case periodically for correct oil level. (See Lubrication and Maintenance section).

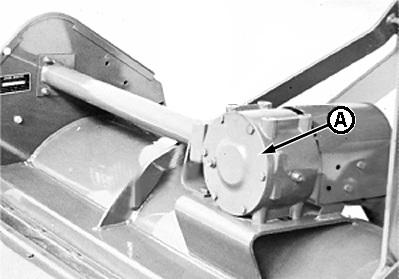

A-Gear case
