Adjusting Tractor Hitch

NOTE: The 25A mower is compatible with either a category I or II three-point hitch.

Refer to tractor Operator's manual to adjust the following:

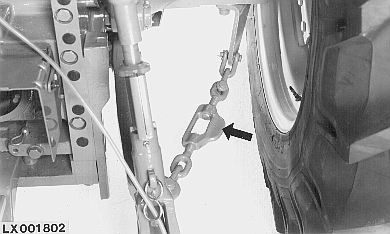

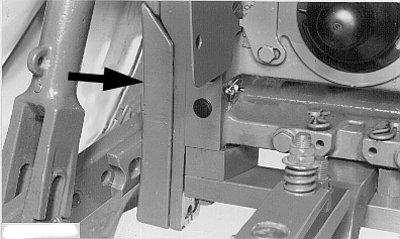

1. Side Sway. Adjust sway chains or locks/blocks to minimize side movement at all hitch positions.

2. Lateral Float. Place lift link pins in the float position.

3. Center Link. Place center link in correct position for proper draft-sensing sensitivity.

A-Float position
B-Rigid Position

PX07220,0000004 -19-25APR02-1/1
