Adjusting Cutting Height

1. Position machine on flat level ground.

2. Set gauge roller cutting height position. (See SETTING CUTTING HEIGHT in Preparing the Mower section).

IMPORTANT: Improper tractor center link adjustment may affect the mower's cutting height settings.

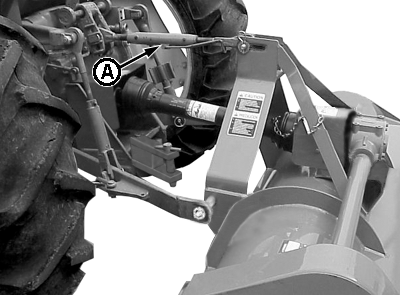

3. Adjust tractor center link (A) until gear case support plate is horizontal, adjust as necessary to match the actual cutting height with the desired cutting height previously set.

4. Set lower limit on tractor rockshaft control. (See your tractor Operator's manual).

A-Tractor center link

PX07220,0000019 -19-27APR02-1/1
