Center Hitch Pin

Category I: Remove bushing (A) and ball (C) from pin (B).

Category II: Use bushing (A) and ball (C) on pin (B). Remove ball (C) if tractor center link is equipped with one.


A-Bushing
B-Center hitch pin
C-Ball

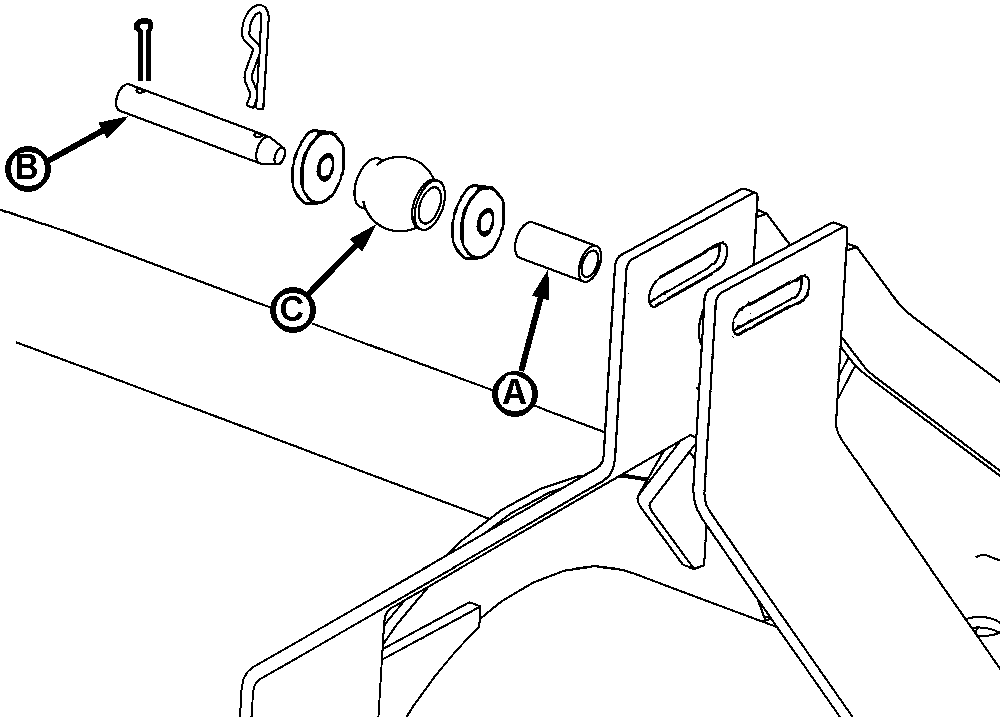

P11323

PX07220,0000037 -19-07MAY02-1/1
