Drive Pulley Bearing and Gauge Roller Bearings

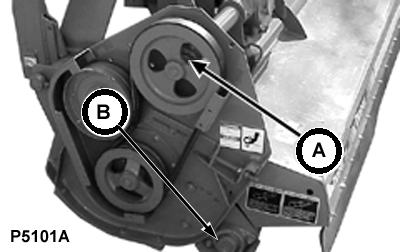

Grease drive pulley bearing (A) and gauge roller bearings (B).

P5101A-UN-03MAY02

A - Drive Pulley Bearing

B - Gauge Roller Bearing

IMPORTANT: Lubricate bearings with multi-purpose HD-lithium complex grease that meets NLGI grade No. 2.
