Checking Driveline Shield

Checking Driveline Shields

CAUTION: Before servicing machine refer to LUBRICATING AND MAINTAINING MACHINE SAFELY at the beginning of this section.

Check driveline shields by making sure they rotate freely. Lubricate or repair if necessary.

P12787
P12787-UN-22DEC03

Check Hitch Pin Torque

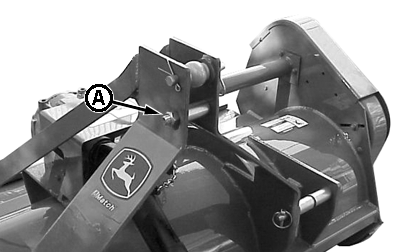

  1. Check hitch pin lock nut (A) on pivot plate periodically to be sure it is tight.

  2. Tighten to specifications. (See CAP SCREW TORQUE VALUES in Specifications Section)

CN80434,0000389-19-20160713
