Adjusting Tractor Hitch

LX001802
LX001802-UN-05JAN95

Sway Chain

P11303
P11303-UN-06MAY02

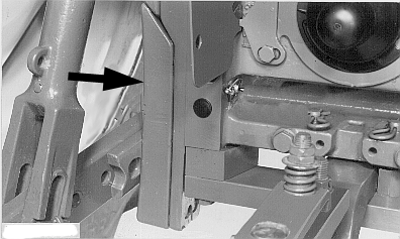

Sway Block

P7489
P7489-UN-19OCT00

Lift Link Pin - Float Position

P7490
P7490-UN-19OCT00

Lift Link Pin - No Float Position

A - Float Position

B - Rigid Position

NOTE: The 370 and 390 mowers are compatible with either a category I or II three-point hitch with or without Quick Coupler. The 360 model is compatible with either a category I or II three-point hitch without Quick Coupler or with a category I with Quick Coupler.

Refer to tractor Operator's Manual to adjust the following:

  1. Side Sway: Adjust sway chains or locks/blocks to minimize side movement at all hitch positions.

  2. Lateral Float: Place lift link pins in the float position.

  3. Center Link: Place center link in correct position for proper draft-sensing sensitivity.

  4. Rate of Drop: Allow at least two seconds for machine to lower from full height to ground.

PX07220,00010CC-19-20090526
