Setting Cutting Height

P11295-UN-07MAY02

P11296-UN-02MAY02

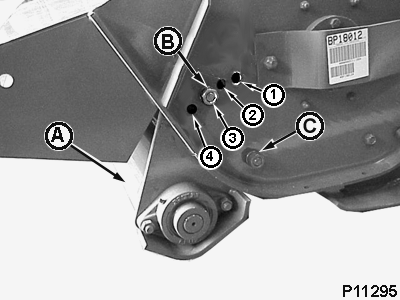

A - Gauge roller

B - Top bolt

C - Lower bolt

The mower has a cutting height range from 13 to 127 mm (0.5 to 5 in). The desired cutting height of the knives is set by pivoting the gauge roller (A).

Pivoting the roller upward lowers the knives and pivoting the roller downward raises the knives.

IMPORTANT: Under no circumstances should the knives contact the ground.

1. Adjust height by removing the top bolt (B) from each end of the roller mounting and by loosening the lower bolt (C) in each end.

2. Position the roller for desired cutting height according to chart.

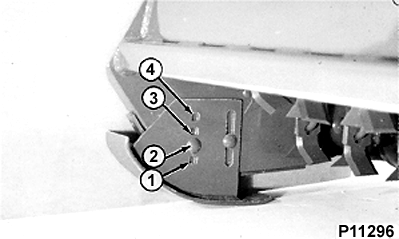

3. For 390 Mowers: match the position of the skid plate with the position of the gauge roller according to the chart.

Setting/Position	Cutting Height
1	13 mm (0.5”)
2	51 mm (2.0”)
3	89 mm (3.5”)
4	127 mm (5.0”)
