Center Link Mounting Hardware - 360, 370 and 390

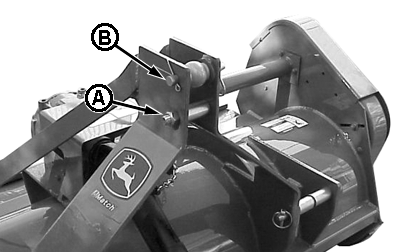

P11264-UN-30APR02

Center hitch mast

A - Hitch Bolt

B - Hitch Pin

IMPORTANT: To avoid damaging the machine, DO NOT remove quick coupler hitch mounting hardware from center hitch mast when using 3-Point Hitch.

NOTE: To prevent damage on central hitch mast, keep the hitch bolt (A) properly torqued.

The mower can be attached to a Tractor equipped with a 3-Point or Quick Coupler Hitch.

Use lower position, hitch bolt (A), if mower is attached to a tractor equipped with Quick Coupler.

Use top position, hitch pin (B), if mower is attached to a tractor without Quick Coupler.

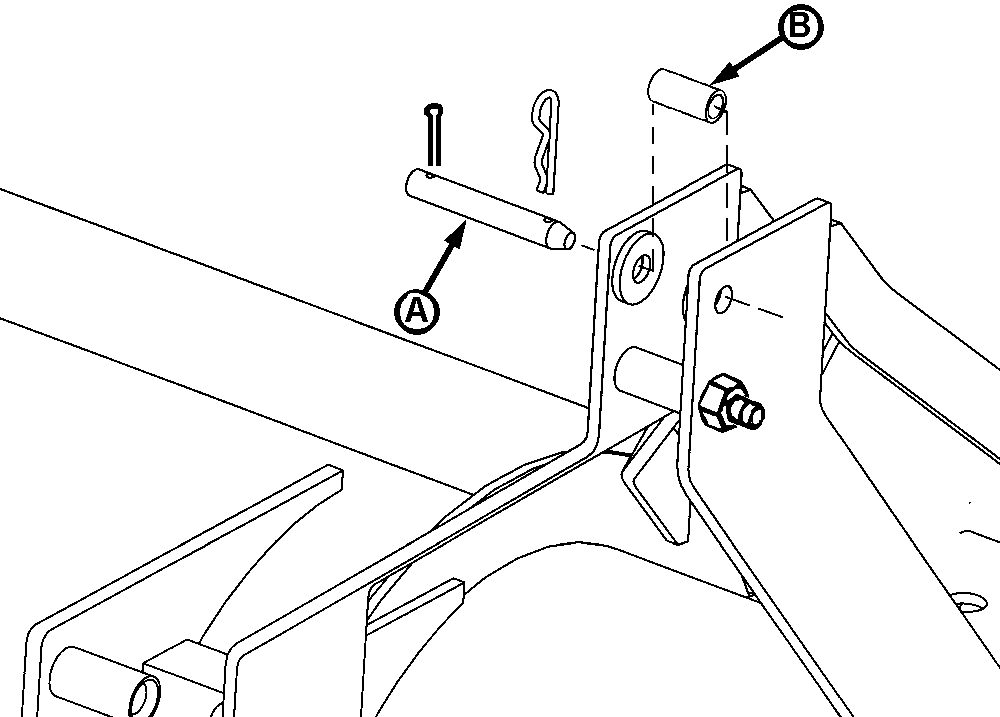

P12788-UN-22DEC03

A - Hitch Pin

B - Bushing

IMPORTANT: To avoid damaging the machine, DO NOT remove quick coupler hitch mounting hardware from center hitch mast when using 3-Point Hitch.

Hitch Categories, 3-Point Hitch

3-Point Hitch Category	Mounting Hardware
1	Use hitch pin (A), and locking pins
2	Use hitch pin (A), bushing (B), and locking pins

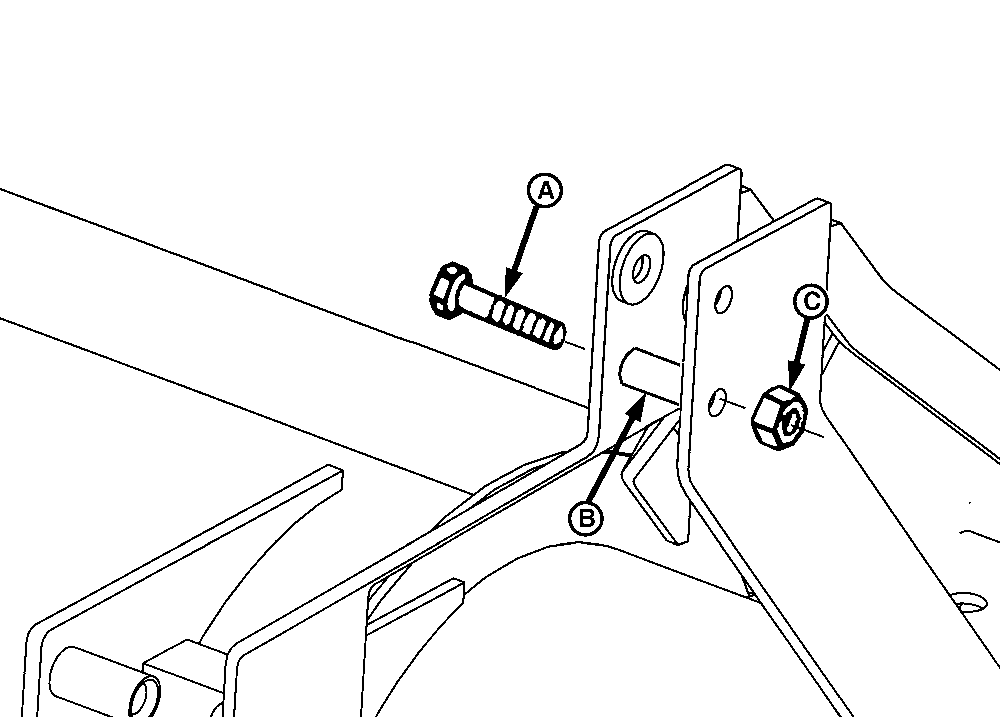

P12784-UN-22DEC03

A - Hitch Bolt

B - Bushing

C - Lock Nut

IMPORTANT: To avoid damaging the machine, DO NOT remove quick coupler hitch mounting hardware from center hitch mast when using 3-Point Hitch.

Hitch Categories, Quick Coupler

Quick Coupler Hitch Category	Mounting Hardware
1	Use hitch bolt (A), bushing (B), and lock nut (C)
2	Use hitch bolt (A), bushing (B), and lock nut (C)
