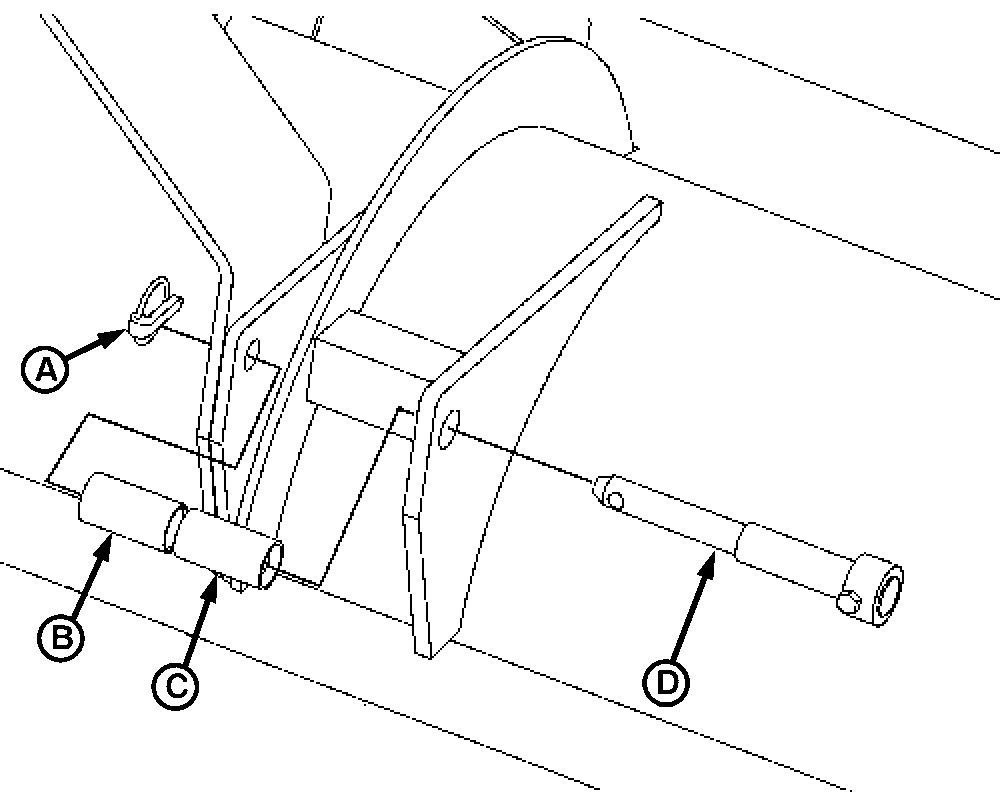

Draft Link Mounting Hardware - 370 and 390

P12785-UN-19DEC03

A - Quick Lock Pin

B - Bushing

C - Bushing

D - Hitch Pin

Hitch Categories, 3-Point Hitch

3-Point Hitch Category	Mounting Hardware
1	Use hitch pin (D) and quick lock pin (A).
2	Use hitch pin (D) and quick lock pin (A).

Hitch Categories, Quick Coupler Hitch

Quick Coupler Hitch Category	Mounting Hardware
1	Use hitch pin (D), bushings (B) and (C), and quick lock pin (A).
2	Use hitch pin (D), bushings (B) and (C), and quick lock pin (A).
