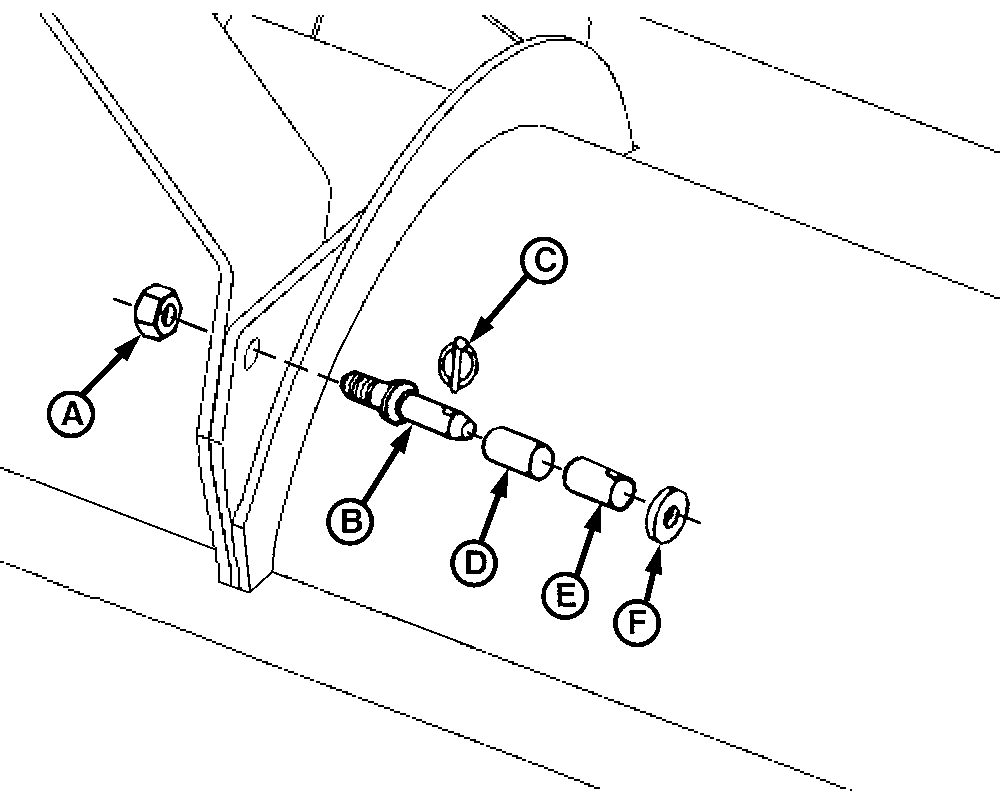

Draft Link Mounting Hardware - 360

P12786-UN-19DEC03

A - Nut

B - Hitch Pin

C - Quick Lock Pin

D - Spacer

E - Bushing

F - Washer

Hitch Categories, 3-Point Hitch

3-Point Hitch Category	Mounting Hardware
1	Use hitch pin (B), quick lock pin (C), nut (A), and washer (F).
2	Use hitch pin (B), quick lock pin (C), nut (A), washer (F), and bushing (E).

Hitch Categories, Quick Coupler Hitch

Quick Coupler Hitch Category	Mounting Hardware
1	Use hitch pin (B), quick lock pin (C), nut (A), washer (F), and spacer (D).
