Assembling Main PTO Driveline Telescoping Members (If Necessary)

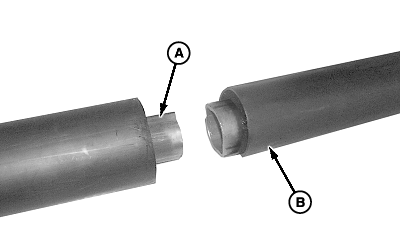

W06278-UN-30JUL03

A - Inner Driveline tube

B - Plastic shield

1. Apply multipurpose grease around outside surface of inner driveline tube (A) and around outside surface of plastic shield (B).

2. Apply multipurpose grease, or equivalent, to all lubrication fittings before operating. (See Lubrication and Maintenance section.)
