Inspecting Knives

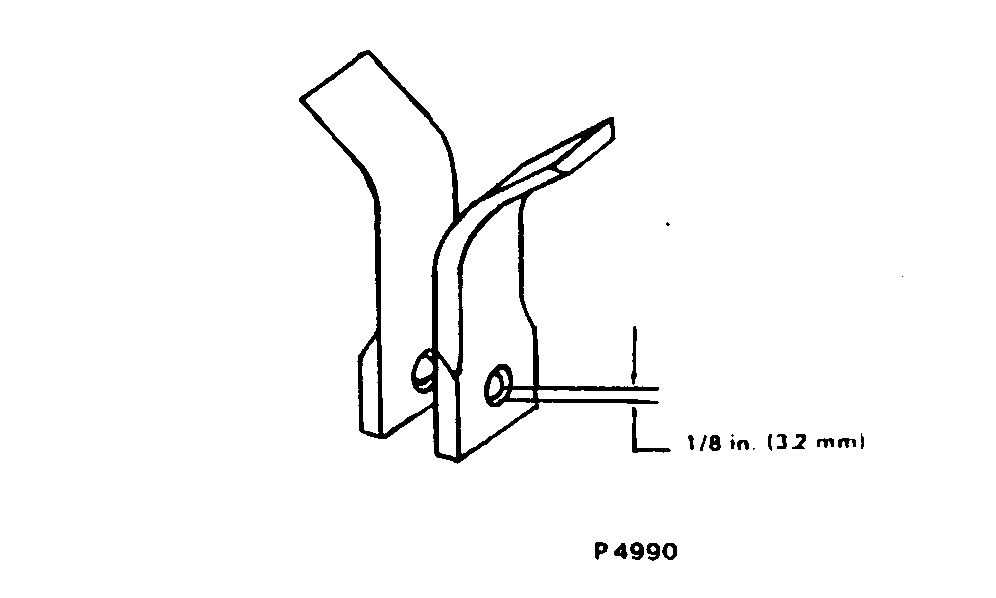

P4990-UN-14OCT92

Side Slicer Knives

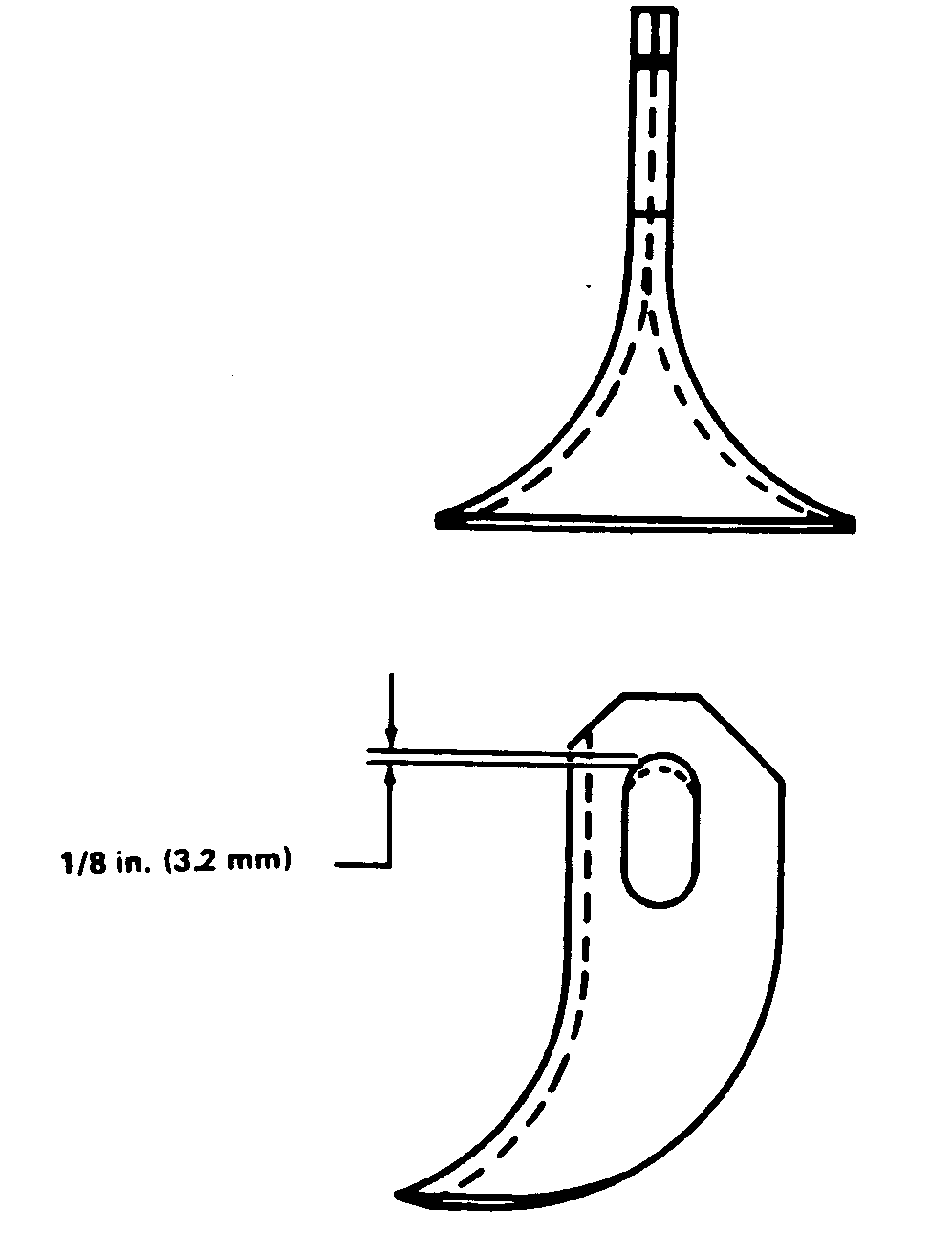

P5240-UN-22MAR93

Smooth Cut Knives

CAUTION: Be sure rotor have stopped completely before checking knives.

Knives should be inspected each time before the mower is operated. The quality of cut, as well as safe operation, depend on regular inspection and care of knives. Knives should be replaced when:

1. Knives are damaged.

2. Knives are worn.

3. The knife hole for the securing ring must not become worn by more than 3.2 mm (1/8”).
