Installing Anti-Wrap Bolts

P11300
P11300-UN-03MAY02

CAUTION: Be sure rotor have stopped completely before installing anti-wrap bolts.

The Anti-Wrap bolts are located at each end of the rotor to prevent stalks and debris from wrapping around the rotor shaft.

Should the rotor shaft ever become wrapped, disengage tractor PTO immediately, remove debris from rotor shaft and check Anti-Wrap bolts for damage. Replace the bolts if they are damaged.

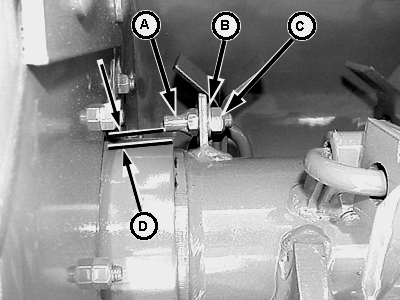

Install bolt (A), washer (B) and nut (C) leaving a gap (D) between the bolt and the ring according to specifications

Specification



Bolt-to-ring Gap (D) ..............

1 to 4 mm (0.04” to 0.16”)


PX07220,00010ED-19-20090526
