Install PTO Driveline

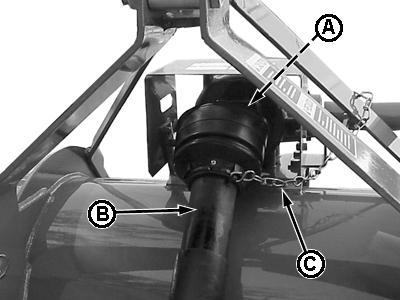

P11292-UN-30APR02

A - Locking collar

B - PTO driveline shield

C - PTO driveline shield chain

1. Apply multipurpose grease on gear case input shaft.

2. Align splines by rotating mower driveline.

3. Pull locking collar (A) and simultaneously push driveline onto gear case input shaft until locking device engages.

4. Pull back on shield (B) to make sure driveline is locked.

5. Attach PTO driveline shield chain (C) to a fixed point on mower.
