Using the Seven-Pin Connector

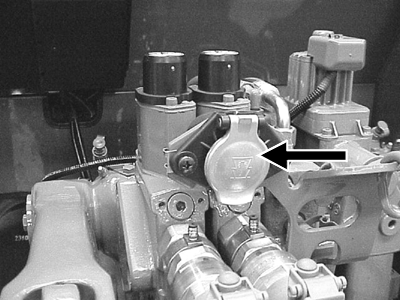

Connector is used to connect lights, turn signals and other electrical equipment on a trailer or implement. Always use additional lighting on a mounted implement when rear tractor lights are concealed.

NOTE: Suitable plugs can be obtained from your John Deere dealer.

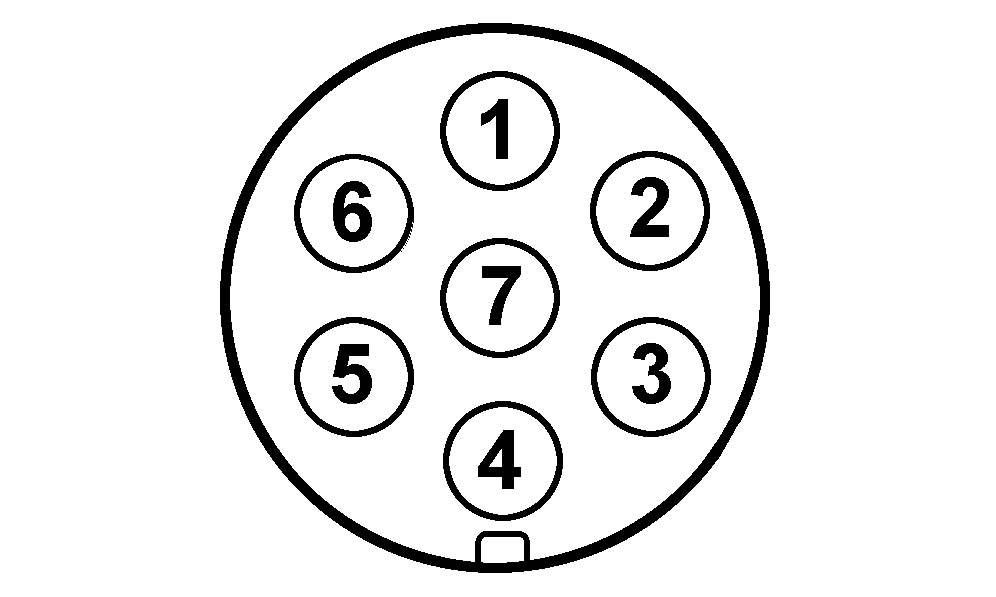

Connection Function
1 Ground
2 Not Used
3 Left Turn
4 Accessory
5 Right Turn
6 Tail Light
7 Accessory
