Engaging Differential Lock

CAUTION: Do not attempt to turn the tractor with the differential lock engaged.

If wheel slip varies greatly between rear wheels, engage differential lock by means of button (A). Do not press the button if the difference in wheel rotation speeds is great. Press one of the brake pedals to disengage the differential lock.

If tractor speed exceeds 12 km/h (7.5 mph) with the differential lock engaged, the differential lock switches itself off automatically.

When tractor speed drops below 12 km/h (7.5 mph) again, differential lock must be engaged manually.

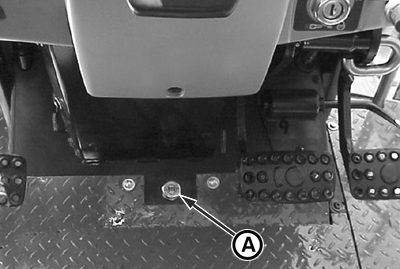

A-Differential lock button
