Super Comfort Seat

To adjust the seat upward, raise it until it clicks into place (maximum of 3 detent positions). To adjust downward, raise the seat to the stop position, then lower it.

IMPORTANT: Before turning the seat, always switch off the engine. This prevents the tractor or implements from moving if any of the controls are accidentally moved.

Swivel movement is operated by means of lever (D) as follows:

Lift lever up. Seat turns 200° to the left and 20° to the right. Seat locks at 10° intervals.

To lower armrest through 30°, press armrest tilt adjuster (F) into armrest.

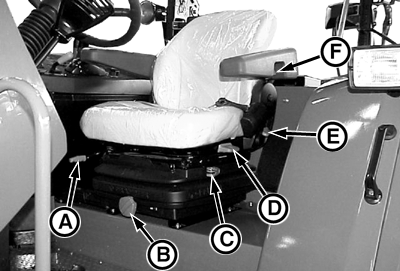

A-Horizontal adjustment lever
B-Operator's weight adjustment knob
C-Fore/Aft adjustment lever
D-Lever for swivel movement
E-Backrest tilt adjustment
F-Armrest tilt adjustment

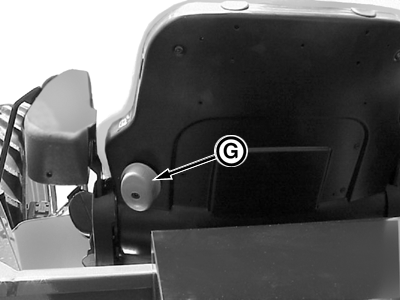

G-Lumbar support adjustment knob

LX,OMKAB011272 -19-01SEP99-1/1
