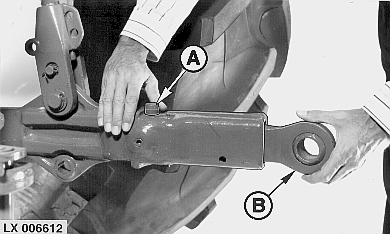

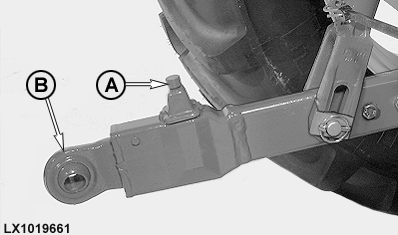

Telescopic Draft LinksThese draft links are intended for Category II and Category IIIN implements. To facilitate hitching of implements, extend the draft links to the rear. 1. On 7220 and 7320 tractors, lift lock pin (A).On 7520 tractors, push lock pin (A) to one side. 2. Pull telescopic draft links (B) to the rear. After attaching and securing implements to draft links, reverse the tractor until the lock pins snap into place.
|
|
