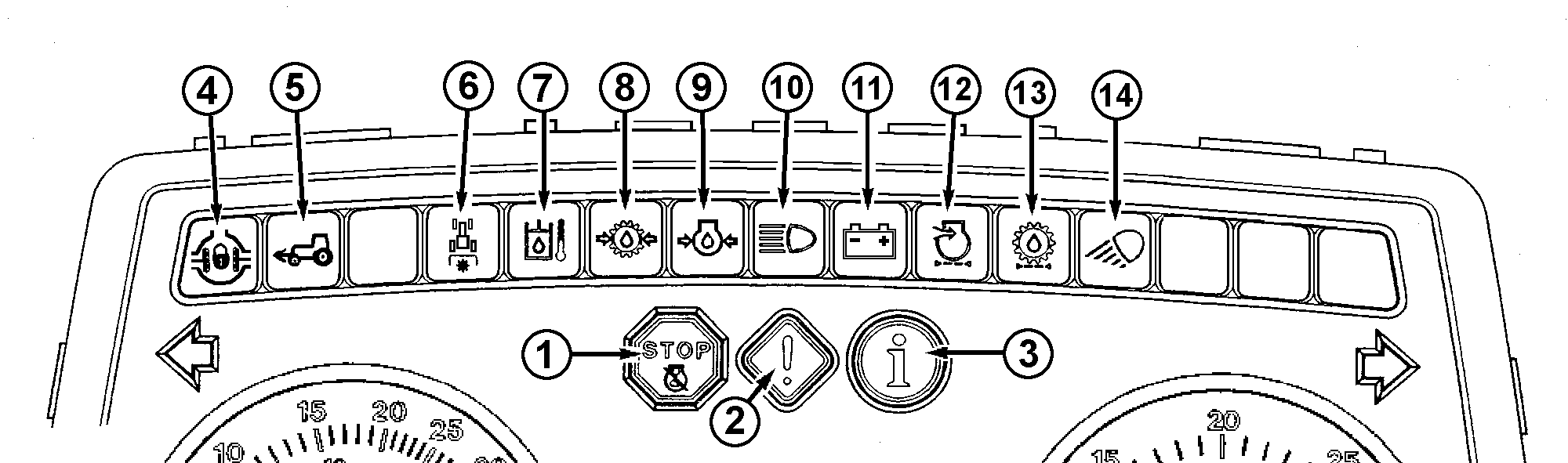

1 - Red "STOP" light flashes and lights 7, 8, 9 or 10 come on when a serious malfunction occurs. Switch off the engine IMMEDIATELY and determine the cause.

2 - Yellow "CAUTION" light flashes when indicator lights 6, 7, 11, 12 or 13 come on.

3 - Indicates fault in electrical component associated with hydraulic system or transmission. See your John Deere dealer immediately.

4 - Light glows when differential lock is engaged.

5 - Light glows when front-wheel drive is engaged.

6 - Light glows when rear PTO is selected.

7 - Light glows when transmission/hydraulic oil temperature is too high.

8 - Light glows if transmission/hydraulic oil pressure is too low. See your John Deere dealer immediately.

9 - Indicates low oil pressure if engine is running. Shut off engine and check engine oil level.

10 - High beam indicator.

11 - Indicates defect in alternator. Check alternator wires. If necessary, have alternator checked by John Deere dealer.

12 - Air cleaner element must be cleaned or replaced.

13 - Clogged transmission oil filter or oil temperature is too low.

14 - Light glows when worklights are selected.

Bulb test: As the engine is started, all lights should glow for approximately one second, then turn off as soon as engine starts running. If not, check for defective bulb or blown fuse.
