3-Terminal Power Outlet Socket

Terminals 15/80 and 82 of 3-terminal power outlet socket (A) are protected by a 30-amp fuse. Terminal 31 is ground.

3-terminal power outlet socket (A) is used to connect electrical equipment. Turn key in main switch clockwise or counterclockwise to provide power to 3-terminal power outlet socket.

NOTE: A conversion kit is available from your John Deere dealer for equipment that requires a constant power supply even when ignition is off.

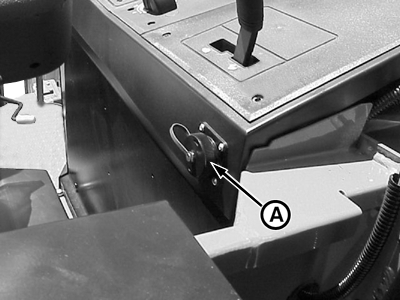

A-3-Terminal Power Outlet Socket.
