Light Switch

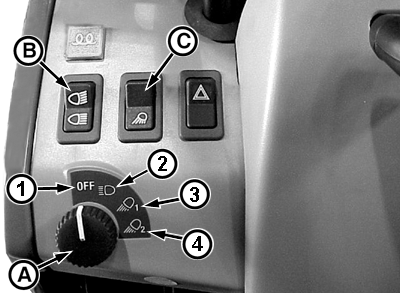

    Light switch (A) can be set to the following positions:

  • 1-Light switch in "off" position
  • 2-Headlights, hazard and tail lights "on"
  • 3-Headlights "on"
  • 4-Headlights and worklights 1 "on"

Switch (B) can be set to the following positions:

  • Switch down =Low beam
  • Switch up = High beam

Corner lights are activated by means of switch (C).

Indicator light (D) will glow when switch (B) is in "high beam" position.


A-Light switch
B-High/Low beam switch
C-Corner light switch
D-High beam indicator

P11601
P11688

1Worklights are: front fender, rear fender and corner lights.
