MFWD Component Identification for Tread Settings (Tractors with 24 in. or 26 in. Rims)

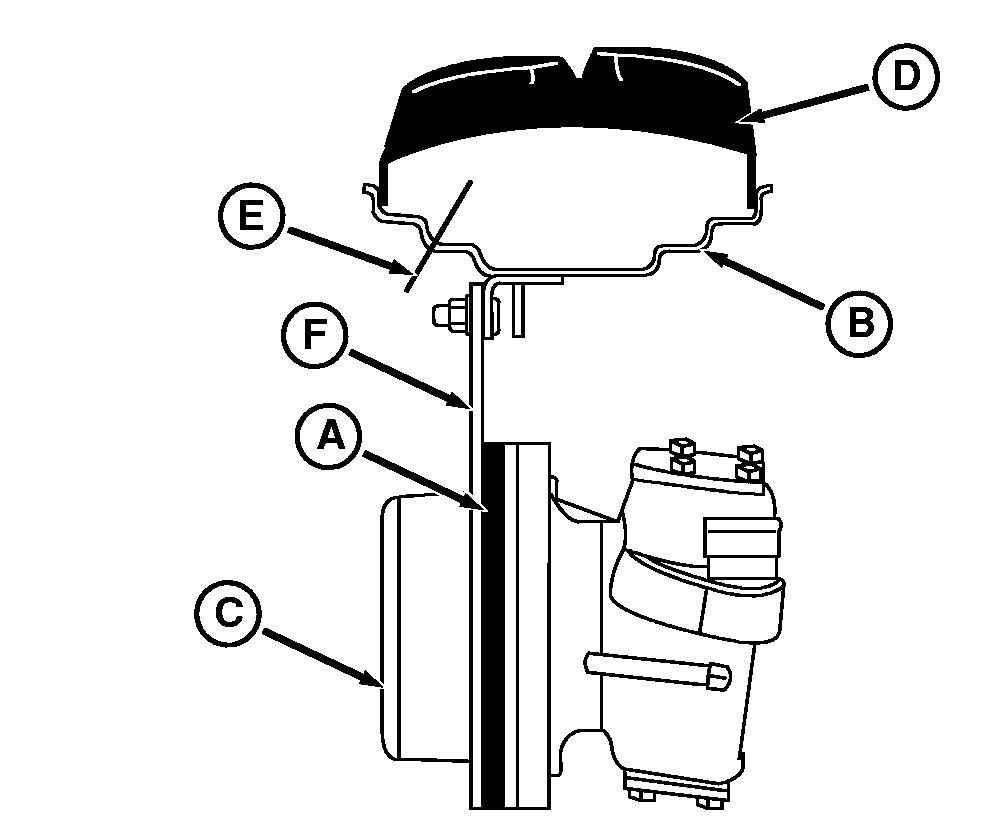

The illustration identifies the components pertaining to MFWD tread settings for tractors with 24 in. and 26 in. rims.

A-Spacer (Optional)
B-Rim
C-Hub
D-Tire
E-Valve Stem
F-Wheel Dish

PX07220,0000002 -19-02OCT02-1/1
