Rear Tread Settings for Single 8-Position Wheels -Standard Tractor - Flanged Axle

NOTE: Tread settings are measured at bottom centerline of tire.

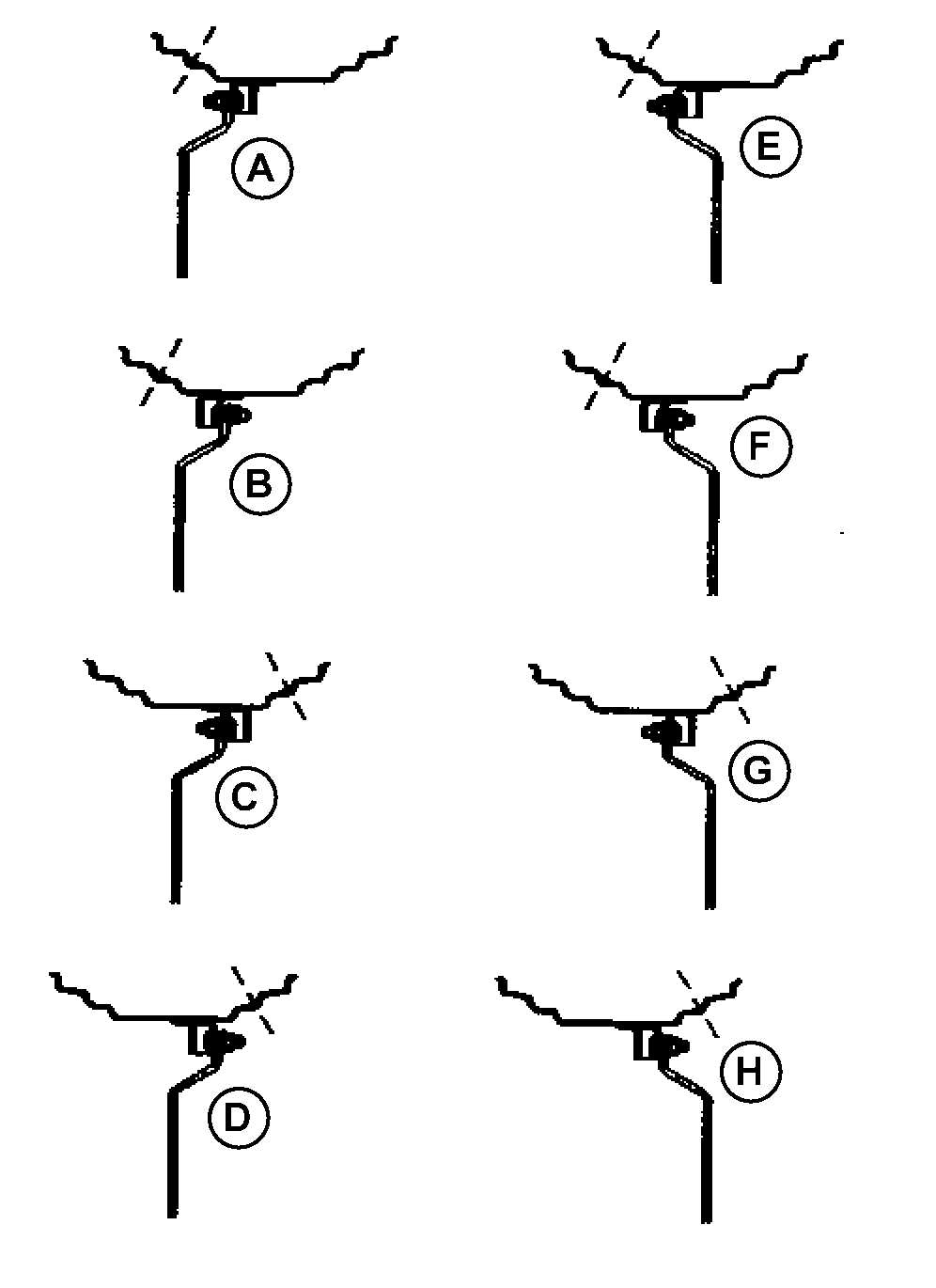

Use diagram as a guide to adjust the rim and disk, to a desired tread setting.

  18.4, 320/90, 480/80 TIRES
  Valve Stem Out Valve Stem In
A - -
B - -
C - 1524 mm (60 in.)
D - 1626 mm (64 in.)
E 1727 mm (68 in.) -
F 1829 mm (72 in.) -
G - 1930 mm (76 in.)
H - 2032 mm (80 in.)
