Sway Blocks - 7220 and 7320 Tractors

Sway blocks (A) are used to limit sideways motion of draft links during operation and transport.

Sway blocks must be fitted when working with attachments which follow exactly the line of the tractor.

If the attachments (plow, disk harrow etc.) require sideways motion in the operating position, remove locking pins (B) and take off the sway blocks.

With sway blocks in this position, draft links will sway in operating position. However, sway is locked out in transport position.

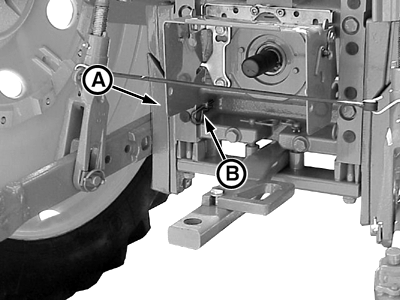

A-Sway block
B-Locking pin

PX07220,0000003 -19-20SEP02-1/1
