MFWD Steering Stop Dimensions - 7520 Tractor

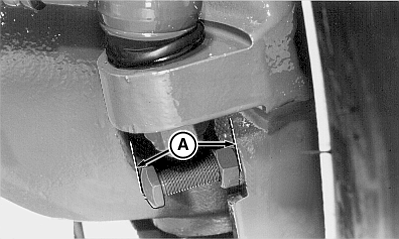

Steering stop dimension (A) is expressed in millimeters . Tractor turning radius increases as steering stop dimension increases. Steering stop dimensions in parenthesis are for tractors without fenders.

NOTE: Tractors with loaders may have different steering stop positions. Refer to the loader operator's manual.

	Tread Settings
	*1510 mm (60 in.)**	*1611 mm (64 in.)**	*1713 mm (68 in.)**	*1814 mm (72 in.)**	*1916 mm (76 in.)**	*2018 mm (80 in.)**	*2119 mm (84 in.)**	2235 mm (88 in.)*
Tire size	Steering Stop Dimensions (mm)
14.9R28	105 (95)	80 (75)	70 (50)	65 (35)	40 (35)	35 (35)	35 (35)	35 (35)
14.9R30	(100)	85 (80)	70 (55)	65 (40)	40 (35)	35 (35)	35 (35)	35 (35)
16.9-26 16.9R26	**	95 (85)	75 (60)	65 (35)	50 (35)	35 (35) ***	**	**
16.9R28	(105)	95 (90)	75 (70)	65 (60)	50 (35)	35 (35)	35 (35)	35 (35)
320/85R34	90 (85)	80 (70)	60 (45)	50 (35)	50 (35)	35 (35)	35 (35)	35 (35)

* Spacers required for exact settings. See your John Deere Dealer.
** Combination not used.
*** Spacers required for these settings. See your John Deere Dealer.
