Stopping the Engine

IMPORTANT: Before stopping engine that has been operating at working load, allow engine to idle 1-2 minutes at 1000-1200 rpm.

Stop tractor and reduce throttle to slow idle position.

Lower all equipment to the ground. Make sure SCV levers are in the NEUTRAL position and PTO switch is disengaged.

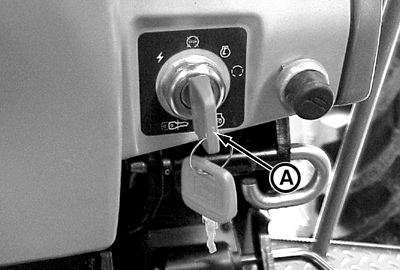

Shift to PARK position, switch ignition off, and remove key (A).

IMPORTANT: Avoid damaging transmission. Engage PARK position only when the tractor is stationary.

A-Key

PX07220,0000007 -19-19AUG02-1/1
