Adjusting Drawbar

The swinging drawbar can be adjusted to four different positions:

250 mm (9.8 in.), 350 mm (13.8 in.), 400 mm (15.7 in.) and 550 mm (21.7 in.).

NOTE: 550 mm (21.7 in.) is NOT an option on 7520 tractor.

These lengths determine the distance from the end of the PTO shaft to the attachment point of the swinging drawbar.

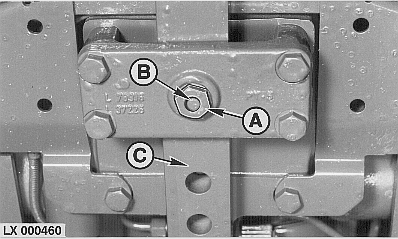

1. Remove hexagonal stopper (A).
2. Remove locking pin (B).
3. Shift drawbar (C) to desired position and reinstall locking pin.
4. Tighten hexagonal stopper (A) to 250 N·m (185 lb-ft).

A-Hexagonal stopper
B-Locking pin
C-Drawbar
