Lift Links, Category 2 Hitch - 7220 and 7320 Tractors

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

To level implement from side-to-side, adjust one link. Use crank (A) to adjust the link. After adjustment is completed, secure handle (A).

To adjust left-hand lift link, proceed in the same way as for the right link.

Length of links must be kept within the following limits:

  • Minimum length 705 mm (27.8 in.)
  • Maximum length 865 mm (34.1 in.)

NOTE: The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

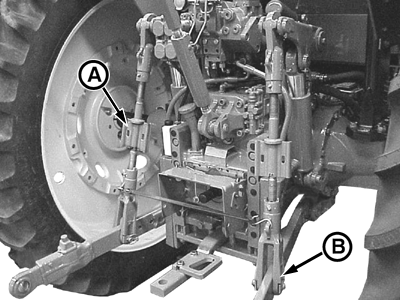

P11637


A-Adjusting handle
B-Yoke end

PX07220,0000009 -19-22AUG02-1/1
