Lift Links, Category 3N Hitch - 7520 Tractor

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

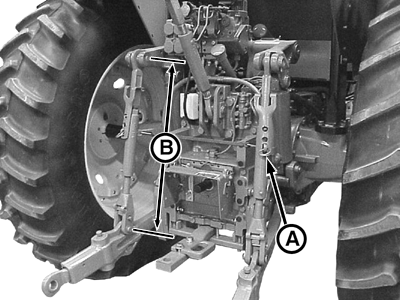

To level implement from side-to-side, adjust one link. Use crank (A) to adjust the link. After adjustment is completed, secure handle (A).

Length of links (B) must be kept within the following limits:

  • Minimum length 875 mm (34.4 in.)
  • Maximum length 1,035 mm (40.7 in.)

NOTE: The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

P11638

PX07220,000000A -19-22AUG02-1/1
