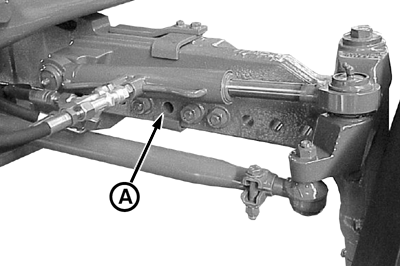

Two-Wheel Drive Front Axle Tread Settings - StandardAdjustable front axle (A) has seven standard tread settings. |
|
| Axle Position | ||||||||
| Tire Size | Valve Stem Location | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 11.00-16 | Out | 1515 mm (59.5 in.) |
1615 mm (63.5 in.) |
1715 mm (67.5 in.) |
1820 mm (71.5 in.) |
1920 mm (75.5 in.) |
2020 mm (79.5 in.) |
2125 mm (83.5 in.) |
| In | 1615 mm (63.5 in.) |
1715 mm (67.5 in.) |
1820 mm (71.5 in.) |
1920 mm (75.5 in.) |
2020 mm (79.5 in.) |
2125 mm (83.5 in.) |
2225 mm (87.5 in.) |
|
PX07220,000000B -19-01OCT02-1/1 |
