Sway Blocks - 7520 Tractor

Sway blocks (A) are used to limit sideways motion of draft links during operation and transport.

Sway blocks must be fitted when working with attachments which follow exactly the line of the tractor.

NOTE: If hitch has too much side sway with sway blocks installed, shims may be added between sway block support brackets and PTO housing. Shims are available from your John Deere Dealer.

Mount sway blocks (A) in upper position to allow side sway when hitch is lowered.

IMPORTANT: To prevent draft link interference, be sure distance between tires is:

• Category 2 - 1.09 m (43 in.)

• Category 3N - 1.09 m (43 in.)

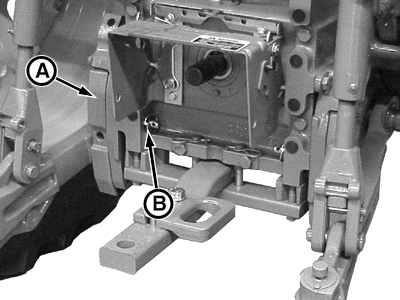

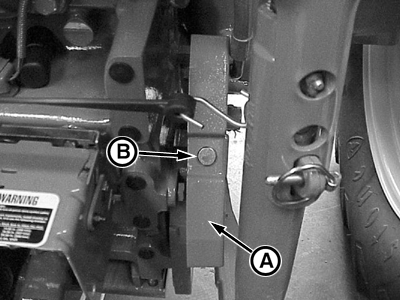

A-Sway block
B-Quick-lock pin

PX07220,000000D -19-22AUG02-1/1
