MFWD Toe-In Check

1. Measure distance (A) between tires at the hub level in front of axle. Mark the point that is measured.

2. Drive forward one half tire revolution.

3. Measure same distance (B) between tires, this time behind axle.

4. Determine the difference between front and rear measurements. Rear distance should be no more than 3 mm (1/8 in.) longer than front distance.

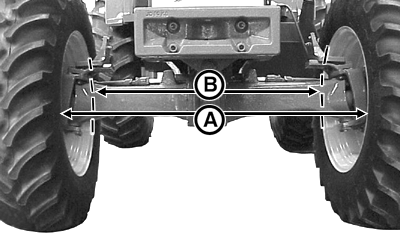

P11643


A-Distance Between Tires In Front Of Axle
B-Distance Between Tires Behind Axle
