Mounting Fenders on Loader-Equipped Tractors

To make sure fenders will clear loader frame during operation, install right-side fender on left-side tire and vice-versa. Adjust fenders as needed.

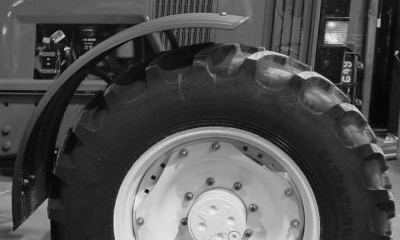

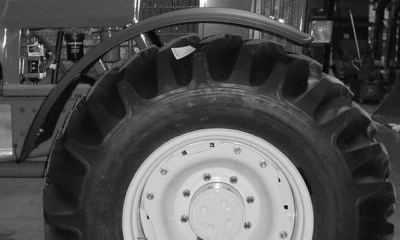

After reversing, each fender will cover a larger portion of tire front, as shown.

PX07220,0000013 -19-03OCT02-1/1
