Fan Belt Replacement

Pull the catch and lift the hood up.

PX07220,0000031 -19-28AUG02-1/5

CAUTION: Disconnect the battery ground cable (-).

Loosen the four hex. nuts and push the fan forward.

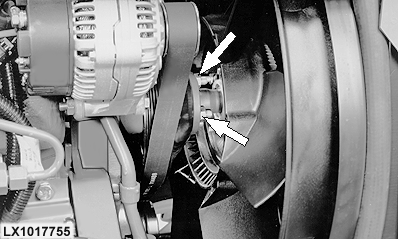

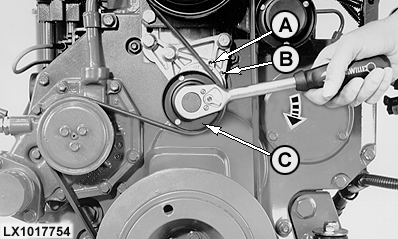

Use a 15 mm (19/32 in.) wrench to turn the cap screw in the idler roll clockwise (see arrow) until the two holes (A) and (B) are aligned.

Insert a metal pin with a dia. of 5 mm (0.2 in.) into the two aligned holes.

Before tensioning, turn the idle roll a little to relieve the pressure on the metal pin, and then take out the metal pin. The drive belt tensioner returns to its tensioning position automatically.

A-Hole (cam)
B-Hole (base plate)
C-Idler roll

PX07220,0000031 -19-28AUG02-2/5

Remove old drive belt from pulleys, and cut.

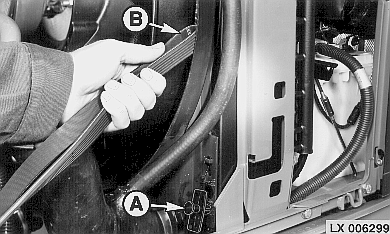

Remove the three expanding plugs (A) of the shroud. Place a loop of the new drive belt (B) between fan and shroud.

A-Expanding Plugs
B-New Belt

PX07220,0000031 -19-28AUG02-3/5

Turn fan while at the same time placing the drive belt around the fan.

PX07220,0000031 -19-28AUG02-4/5

Installing a New Drive Belt

Loosen drive belt tensioner and install new drive belt.

For further assembly, see "Removing Drive Belt".

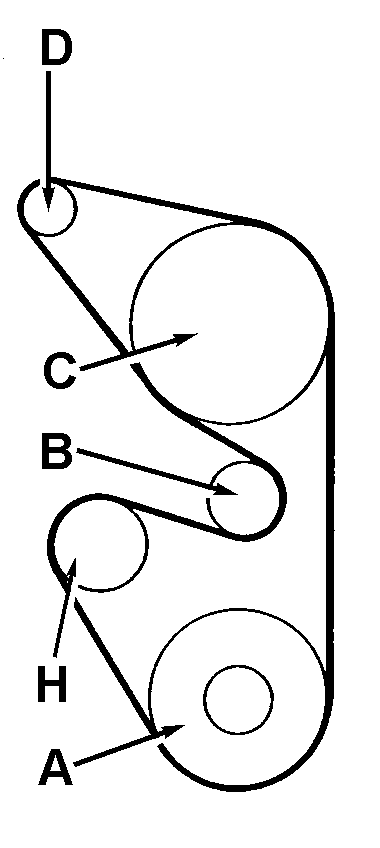

A-Crankshaft
B-Idler roll
C-Fan
D-Alternator
E-Deflection roll
F-Compressor (air pressure)
G-Compressor (air conditioning system)
H-Coolant pump
