Transmission/Hydraulic Oil Level Checking

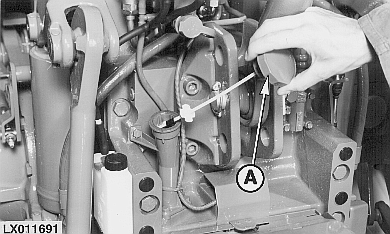

IMPORTANT: Check level with cold oil, preferably after tractor has been standing overnight. 1. Park tractor on level surface.2. Apply handbrake. 3. Lower draft links and front-mounted implements. 4. 7220 and 7320 Tractors Unscrew dipstick (A), remove it and wipe it clean. 5. Screw-in dipstick fully, remove it and check the oil level. Oil level should be between the marks on the dipstick. Add oil at the oil filler neck as necessary. 6. 7520 Tractor Oil level should be between the marks on sight-glass (B). Add oil at the oil filler neck as necessary. |
|
PX07220,0000037 -19-28AUG02-1/1 |
