Front Axle Lubrication

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

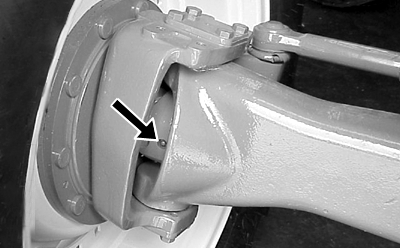

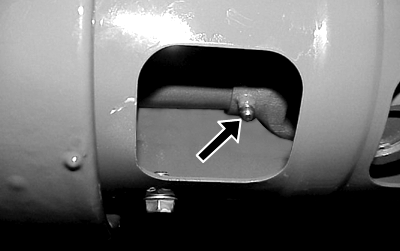

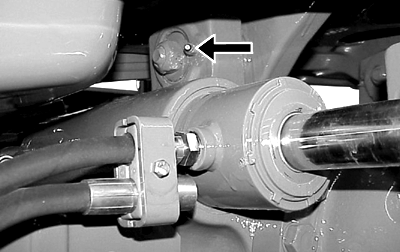

Lubricate the grease fittings on the front axle and drive shaft using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.

NOTE: The number and position of grease fittings varies depending on axle type.

PX07220,0000038 -19-28AUG02-1/1
