MFWD Axle Housing Oil Level Check

Service Interval - 250 Hours



Remove oil level plug (A). Oil should be level with plug bore. If necessary, top up with oil. Tighten level plug to 150 N·m (110 lb-ft). Always use oil listed in "Fuel, Lubricants and Coolant" section.

NOTE: The position of level plugs varies depending on axle type.


A-Oil Level Plug

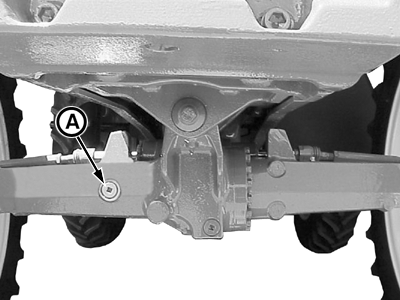

P11659

7220 and 7320 Tractors

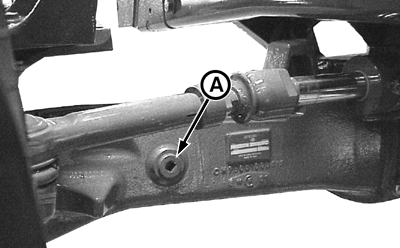

P11660

7520 Tractor

PX07220,0000039 -19-28AUG02-1/1
