MFWD Wheel Hub Oil Level Check

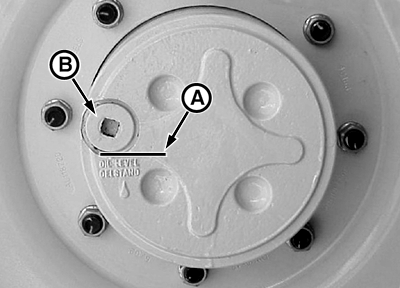

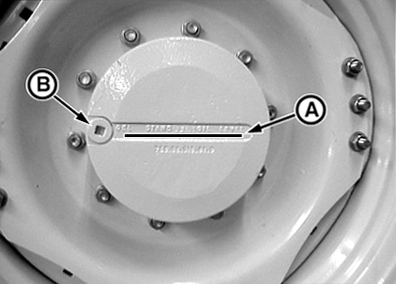

1. Turn wheel until "OIL LEVEL" mark (A) is in level position. 2. Remove level plug (B). Oil should be level with plug bore. 3. If necessary, top up axle at this point. Tighten level plug to 150 N·m (110 lb-ft) on 7220 and 7320 Tractors and 120 N·m (90 lb-ft) on 7520 Tractor. Always use oil listed in the "Fuel, Lubricants, Hydraulic Oil and Coolant" section. NOTE: Replace oil in axle housing and final drives after the first 100 hours of operation. Then replace after every 1500 hours of operation or once every 2 years, whichever occurs first.
|
|
PX07220,000003A -19-28AUG02-1/1 |
