Engine Oil Filter Change

Remove filter element (A) and clean mounting surface (B).

Apply a thin film of oil to sealing ring of new filter. Tighten new filter element until sealing ring touches mounting surface and then turn a further 3/4 to 1-1/4 turns. Do not overtighten.

Start engine and check base of filter for leaks.

Shut off engine and check oil level.

NOTE: Change engine oil and filter after first 100 hours of operation.

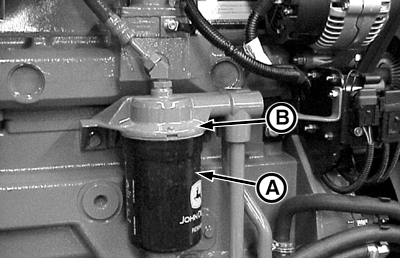

A-Filter Element
B-Mounting Surface

PX07220,000003D -19-28AUG02-1/1
