MFWD Axle Housing Oil Change

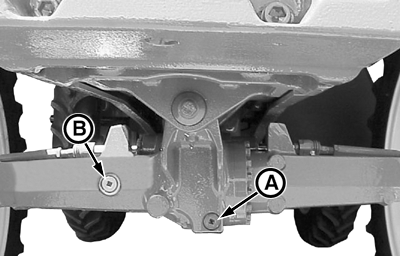

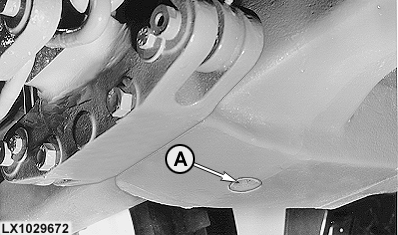

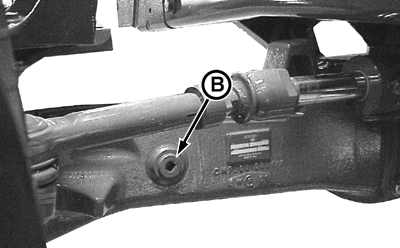

1. Remove drain plug (A) and drain oil into a suitable container. 2. Reinstall drain plug and tighten to 150 N·m (110 ft-lb.). 3. Remove oil level/filler plug (B). Add fresh oil. The oil level must be up to lip of filler neck. Reinstall plug. For capacities, see Specifications section. NOTE: Location of screws varies depending on axle type.
|
|
PX07220,0000043 -19-29AUG02-1/1 |
