OMP70963: 7220, 7320 and 7520 Tractors, U.S.A and Canada, Block File: PX07220_0000044_19

Service Interval - 1500 Hours or 2 Years

causym CAUTION: On axles with brakes: If final drives are hot, oil is under pressure. Remove drain screws slowly.

1. Turn wheel until drain plug (A) is at the bottom. Remove plug and drain oil into a suitable container.

2. Turn the wheel through 90° so that the "OIL LEVEL" mark is in level position and add oil at plug hole. Oil should be level with plug bore.

3. Re-install the drain plug and tighten to 150 N·m (110 lb-ft) on 7220 and 7320 tractors and to 120 N·m (90 lb-ft) on 7520 tractor.

For capacities, see Specifications section.

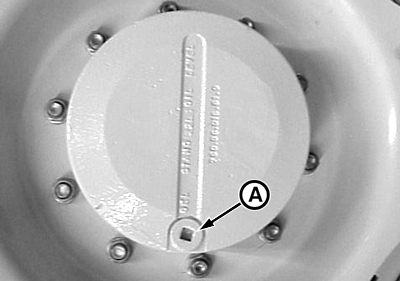

A-Drain Plug

7520 Tractor

P11669

7220 and 7320 Tractors

PX07220,0000044 -19-29AUG02-1/1
