Fuel Filter Checking

Should water or sediment deposits have settled in filter, proceed as follows:

2. Retighten both screws as soon as water and sediment deposits have drained out.

3. Turn key in main switch to the right as far as the first position to operate the fuel transfer pump. Operate pump for approximately 20 seconds.

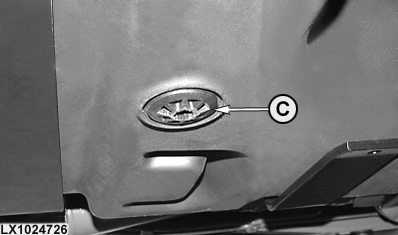

If water was present in fuel filter, loosen fuel tank drain screw (C) one turn. Drain water and contaminants. Tighten drain screw by hand.

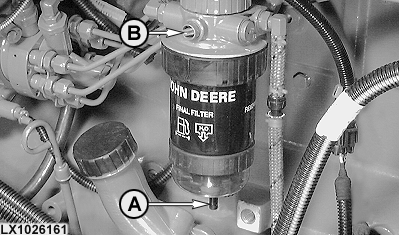

A-Drain Screw
B-Vent Screw
C-Fuel Tank Drain Screw

PX07220,0000046 -19-29AUG02-1/1
