Fuel Filter Replacement

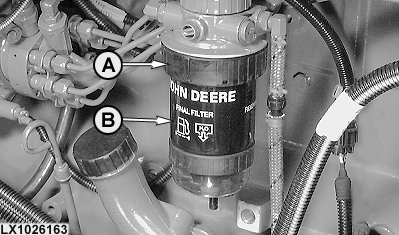

1. Unfasten filter retaining ring (A) and remove filter (B). Seal old filter with cover of the new one. 2. Remove water trap and install it on new filter. 3. Attach new filter. The marks on the filter must be aligned with those on the housing. 4. Tighten retaining ring (A) until it clicks into place. 5. Turn key in main switch to the right as far as the first switch position so that the fuel transfer pump is operating. Allow pump to operate approximately 20 seconds. |
|
PX07220,0000047 -19-29AUG02-1/1 |
