IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

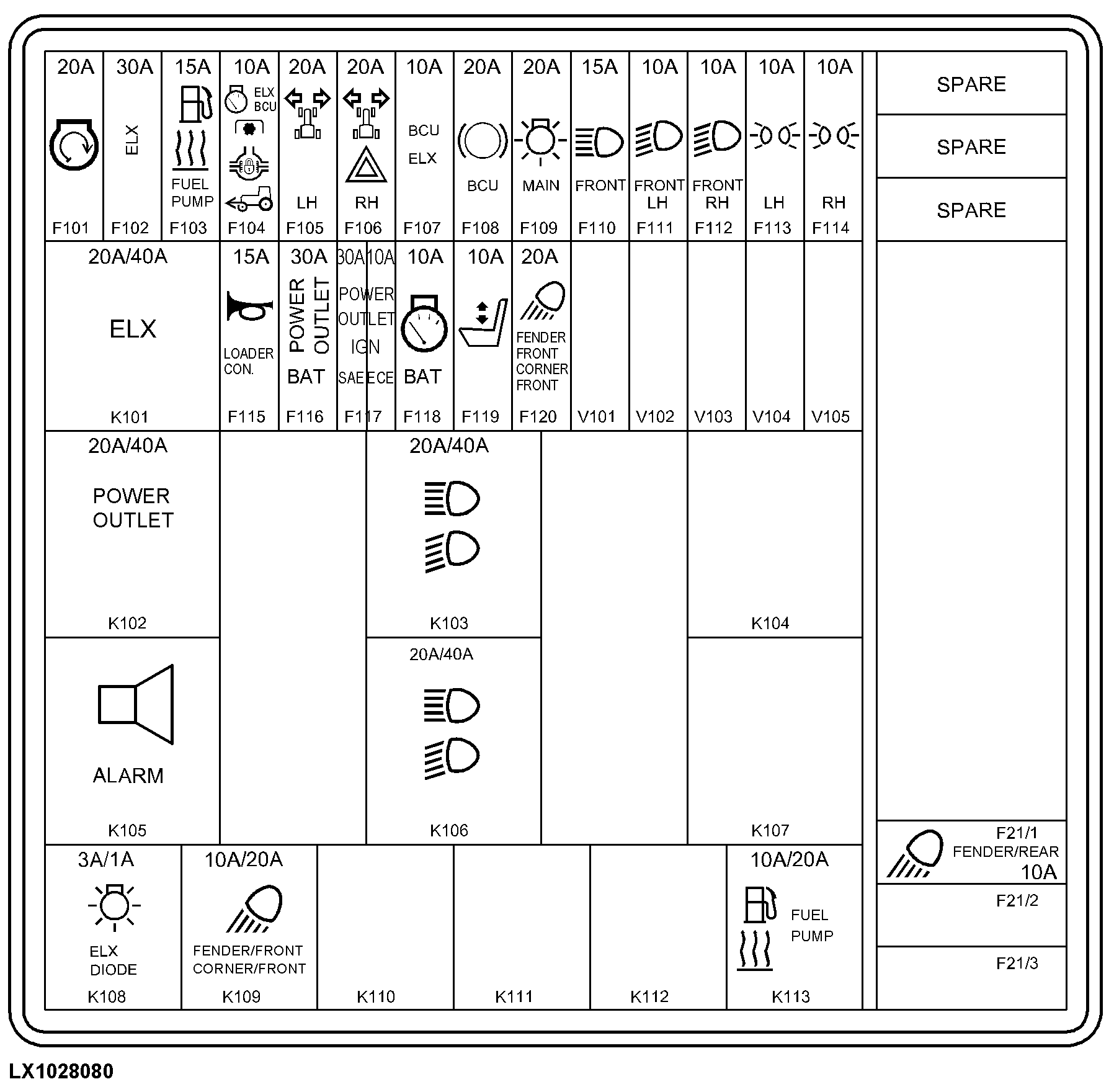

F101 - 20-amp main switch (BAT).

F102 - 30-amp power supply for electronics.

F103 - 15-amp fuel preheater, fuel transfer pump, injection pump shut-off valve.

F104 - 10-amp basic informator, Basic Control Unit (PTO, front-wheel drive, differential lock, turn-signal switch) (power supply).

F105 - 20-amp left-hand turn signal.

F106 - 20-amp right-hand turn signal, hazard warning lights.

F107 - 10-amp Basic Control Unit (BCU) (power supply).

PX07220,0000051 -19-29AUG02-1/2

F108 - 20-amp brake switch, brake light.

F109 - 15-amp light switch (terminal B).

F110 - 15-amp full-beam headlights.

F111 - 10-amp dipped-beam headlight, left.

F112 - 10-amp dipped-beam headlight, right.

F113 - 10-amp l.h. tail light, r.h. hazard light, license plate light.

F114 - 10-amp r.h. tail right, l.h. hazard light.

F115 - 15-amp horn, 2-pin plug for front loader.

F116 - 30-amp 3-terminal socket, socket strip (battery voltage).

F117 - 10-amp 3-terminal socket, socket strip.

F118 - 10-amp basic informator (battery voltage).

F119 - 10-amp operator's seat.

F120 - 20-amp worklights on front fenders.

F21/1 - 10-amp worklights on rear fenders.

F21/2 - Vacant.

F21/3 - Vacant.

V101 - Vacant.

V102 - Vacant.

V103 - Vacant.

V104 - Vacant.

V105 - Vacant.

K101 - Relay of power supply to electronics.

K102 - Relay for 3-terminal socket, power outlet strip.

K103 - Relay for dipped-beam headlights.

K104 - Vacant.

K105 - Acoustic alarm.

K106 - Relay for full-beam headlights.

K107 - Vacant.

K108 - 3-amp lighting diode.

K108 - 1-amp diode for power supply to electronics.

K109 - Relay for worklights on front fenders.

K110 - Vacant.

K111 - Vacant.

K112 - Vacant.

K113 - Relay for fuel preheater, fuel transfer pump, injection pump shut-off valve.
