Neutral Start Safety Circuit

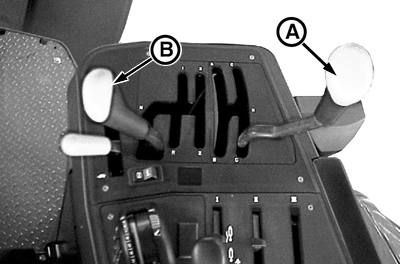

2. Position the range shift lever (A) in neutral.

3. Move gear shift lever (B) to any gear.

4. Turn ignition key switch to the right stop. The starter motor must NOT operate. If it does, see your John Deere dealer immediately.

5. Repeat this test for all other gears.

PX07220,00000A5 -19-04MAR06-1/1
