Check Fan Belt

PX07220,000110C -19-16JUN09-1/6

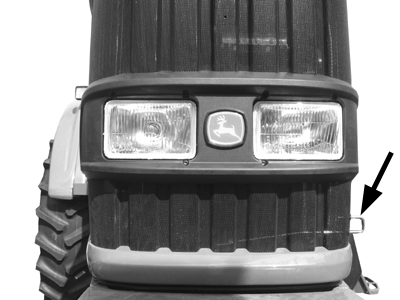

Pull the latch and lift the hood up.

PX07220,000110C -19-16JUN09-2/6

CAUTION: Disconnect the battery ground (-) cable.

Loosen the four hex. nuts and push the fan forward.

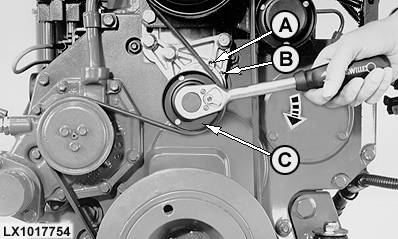

Use a 15 mm (19/32 in.) wrench to turn the cap screw in the idler roller clockwise (see arrow) until the two holes (A) and (B) are aligned.

Insert a metal pin with a diameter of 5 mm (0.2 in.) into the two aligned holes.

Before tensioning, turn the idle roller a little to relieve the pressure on the metal pin, and then take out the metal pin. The drive belt tensioner returns to its tensioning position automatically.

A-Hole (Cam)
B-Hole (Base Plate)
C-Idler Roller

PX07220,000110C -19-16JUN09-3/6

Remove old drive belt from pulleys, and cut.

Remove the three expanding plugs (A) of the shroud. Place a loop of the new drive belt (B) between fan and shroud.

A-Expanding Plugs
B-New Belt

PX07220,000110C -19-16JUN09-4/6

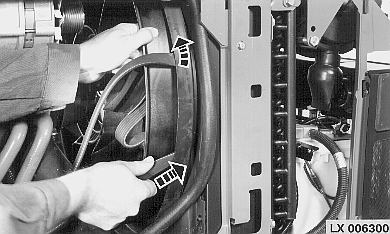

Turn fan while at the same time placing the drive belt around the fan.

PX07220,000110C -19-16JUN09-5/6

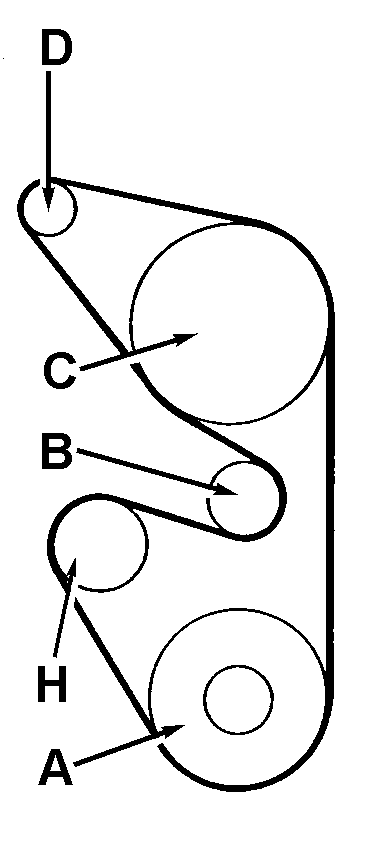

Installing a new drive belt

Loosen drive belt tensioner and install new drive belt.

For further assembly, see "Removing Drive Belt".

A-Crankshaft
B-Idler Roller
C-Fan
D-Alternator
E-Deflection Roller
F-Compressor (Air Pressure)
G-Compressor
H-Coolant Pump

PX07220,000110C -19-16JUN09-6/6
