Check Transmission/Hydraulic Oil Level

IMPORTANT: Oil level should be checked when engine is cool. Preferably in the morning when the tractor has been off all night.

Service Interval - 50 Hours.



1. Park tractor on level ground.

2. Apply the park brake (transmission in neutral).

3. Lower the hitch arms.

SS40167,0000BDD -19-19DEC07-1/2

4. Oil level should be between two marks on sight glass (A). If low, add oil through the fill port (B).

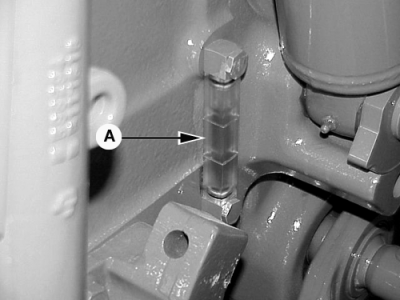

P7844

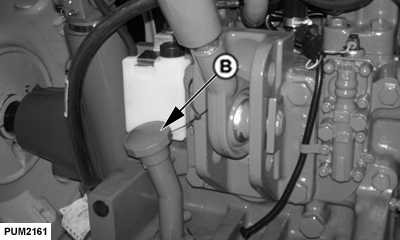

PUM2161

SS40167,0000BDD -19-19DEC07-2/2
